Datasheet

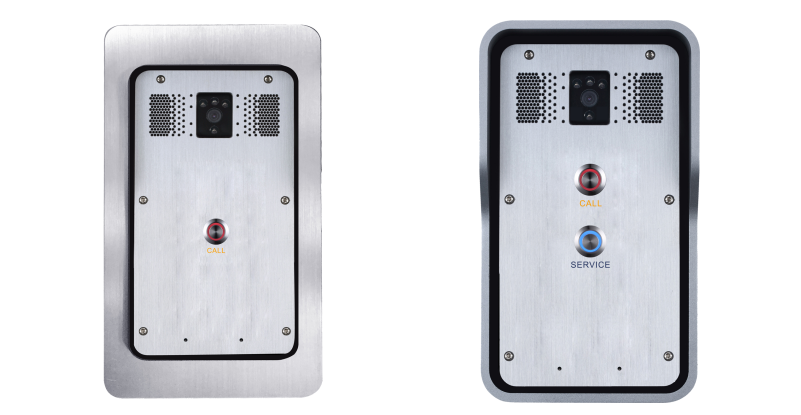

VOPTech DP28

VOPTech DP28 SIP video Intercom, carring VOPTech's 6+ years industrial experience in technology and product design, Combing IP technology together with industrial intercom perfectly

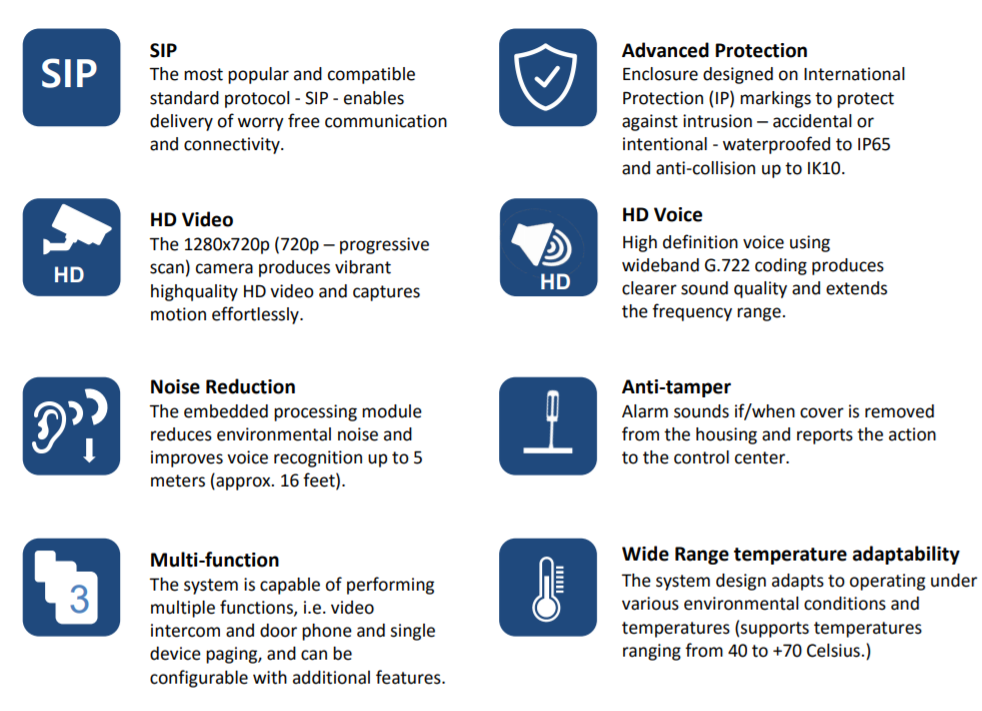

Feature Highlights

  • The most popular and compatible standard protocol – SIP.
  • HD Video & HD Voice
  • waterproofed to IP65 and anti-collision up to IK10
  • Noise Reduction
  • Multi-function
  • Wide Range temperature adaptability

Quick Contact

CAPTCHA
Please wait...

Data Sheet

• 2 SIP Lines

• PoE Enabled

• Full-duplex speakerphone (HF)

• Intelligent DSS Keys (Speed Dial/intercom etc)

• Integrated Noise Reducation with dual MICs

• Omnidirectional pickup

• 2 embedded short-circuit output relays

• Embedded anti-dismantlement alarm

• External Power Supply

• Record voice and video during calls(optional)

• All in ONE intercom and paging service and Selurity  Linkage

• Wall-mount/In-Wall installation

• Voice/video Intercom

• Speed Dial(speed dial key)

• Auto-Answering (per line)

• Voice Message (on server)

• Barge in and calls switched automatically

• Local 3-way Conference

• Wideband CODEC: G.722

• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, iLBC, AMR

• Full-duplex Acoustic Echo Canceller (AEC) – Hands free Mode, 128ms tail-length

•Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background

Noise Estimation (BNE) / Noise Reduction (NR)

• Packet Loss Concealment (PLC)

• Dynamic Adaptive Jitter Buffer

• DTMF: In-band, Out of Band (RFC2833) / SIP INFO

• Omnidirectional pickup: pickup distance 5 m

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR069/SIP PNP

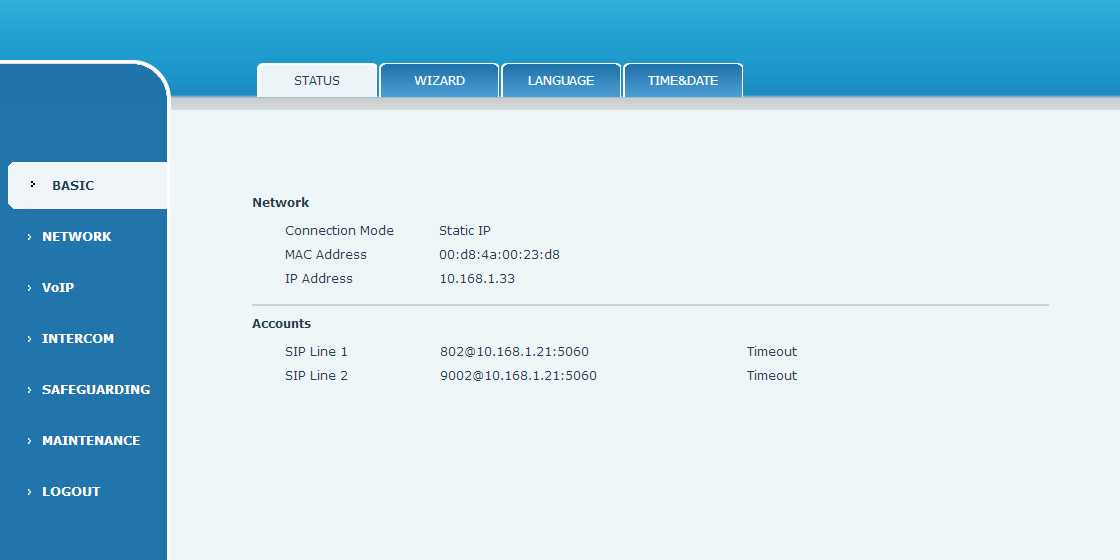

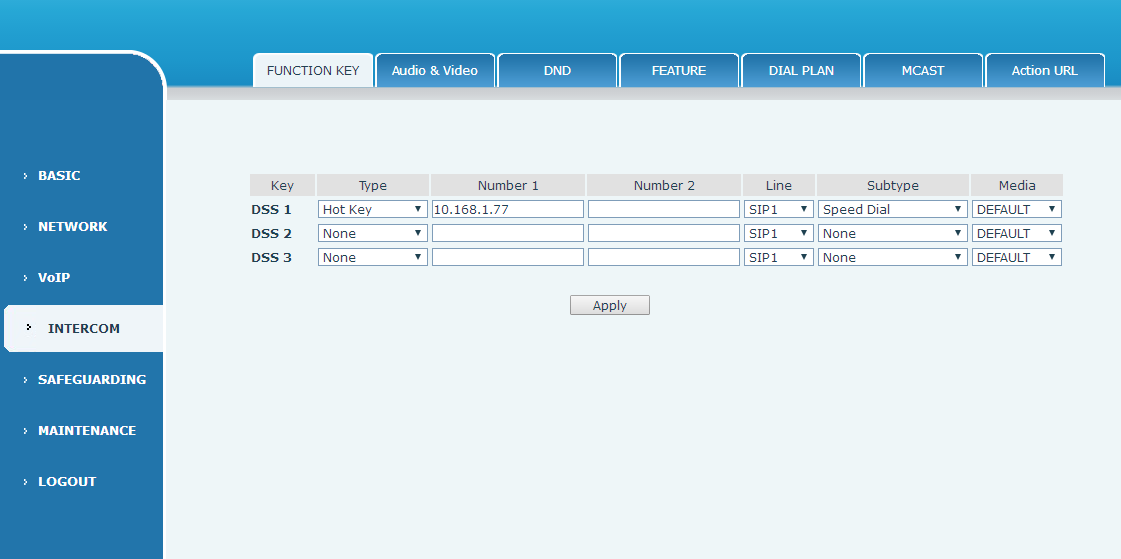

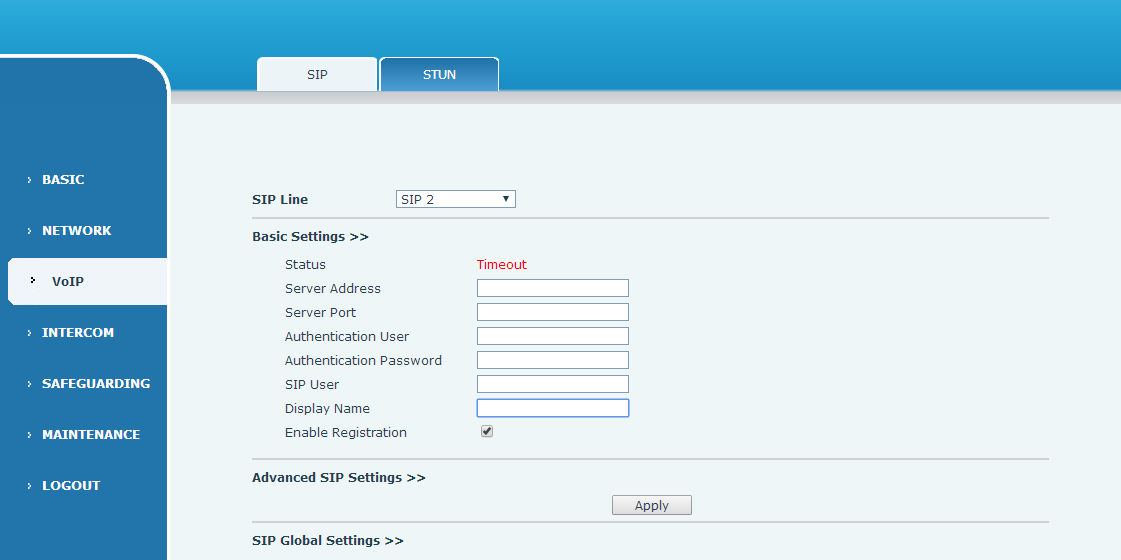

• Web Management Portal

• Web-based Packet Dump

• Configuration Backup/Restore

• Firmware Upgrade

• Keypad:1or2 DSS Keys (Speed Dial)

• 1 10/100/1000BASE-T RJ45 Ethernet interface, Auto  MDIX

• PoE: 802.3af,Class 3

• Main Chipset: Freescale quard cores 1GHz CPU

• SDRAM:1GB DDR3

• Flash:4GB

• TF card:embedded 32GB(optional)

• Camera: 1284 x 724, CMOS(1/4inch)

• Passive Switch(short-circuit output): Normally Open and Normally Closed highest

at 30V/1A AC/DC

• View angle:120°(H)109°(V)

• IRNIGHT Vision:yes

• Audio Amplifier: 3W

• Cables: CAT5 or better

• Power Supply:12V±15%/1A DC or PoE

• Shell Material: Aluminum Cover and Cast-Aluminum back case

• Protection level: IP65 and Ik10

• Storage Temperature:-40~70℃

• Working Humidity: 10~90%

• Overall Dimension: 223 x 130 x 74mm (W x H x L)

• Package Weight:1.45KG
